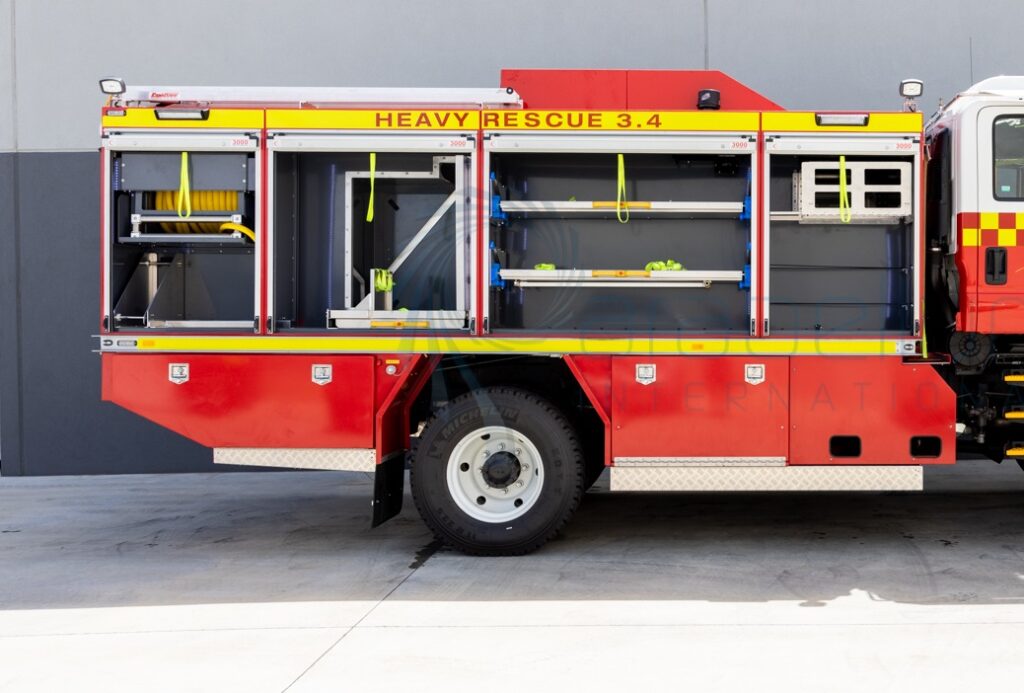

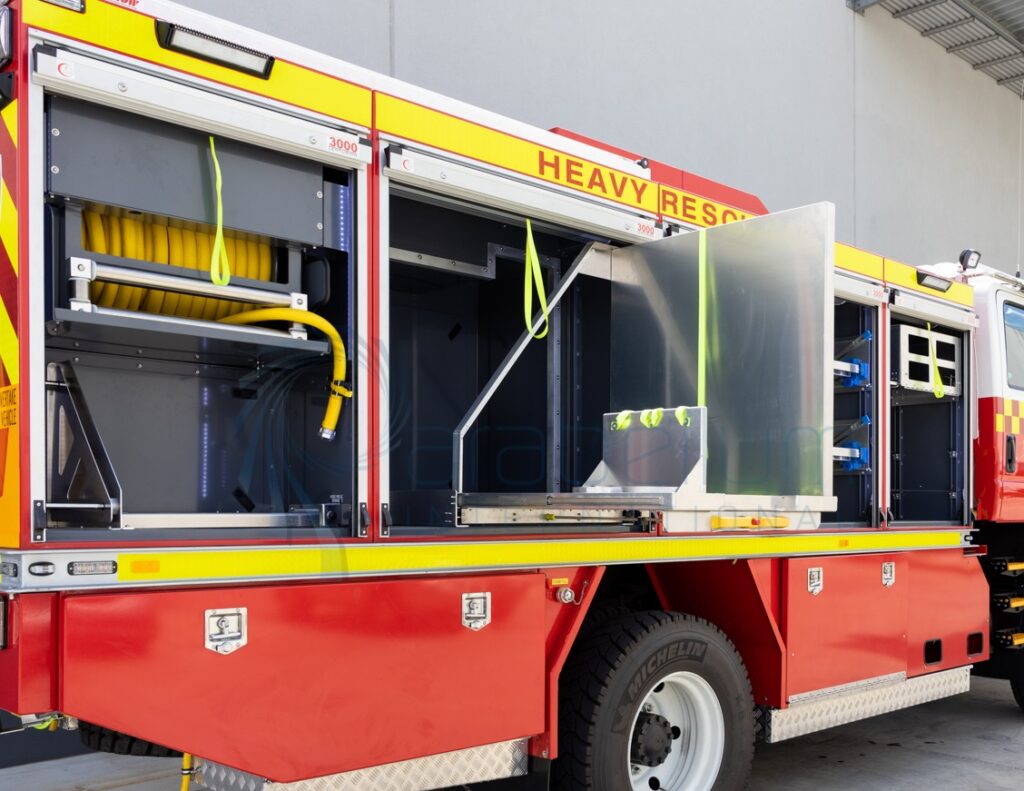

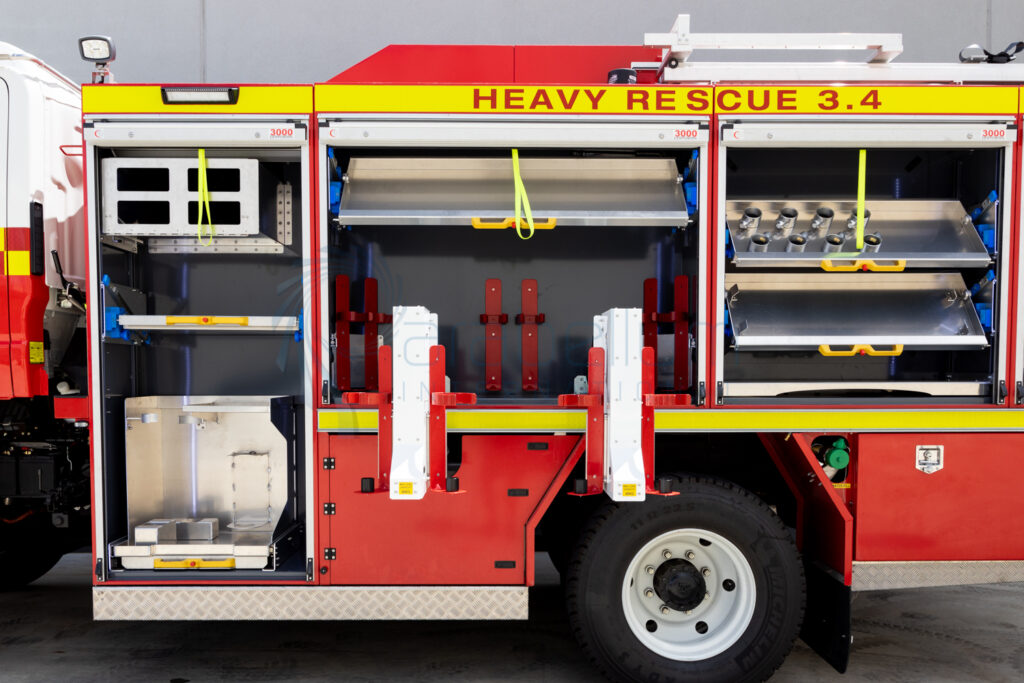

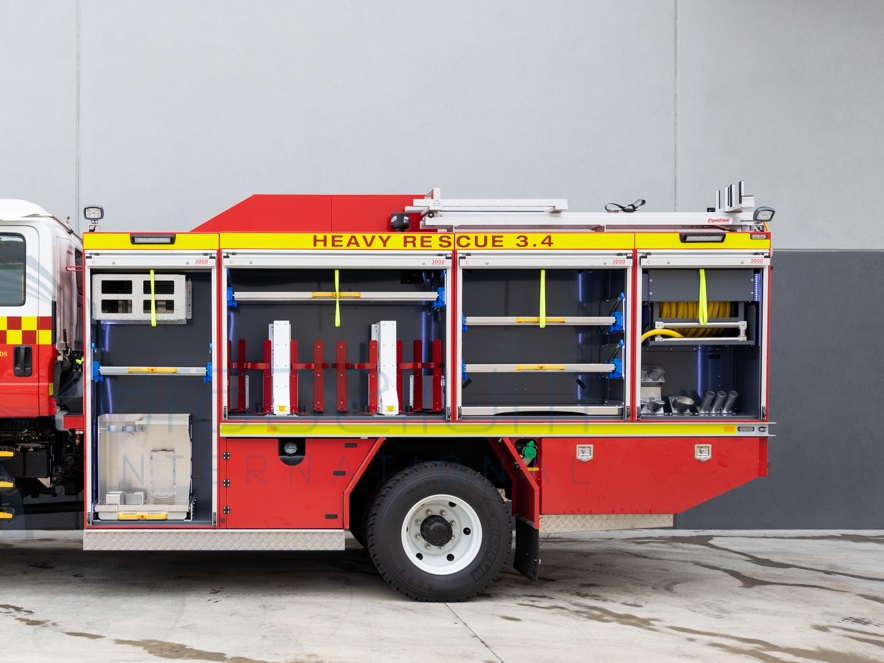

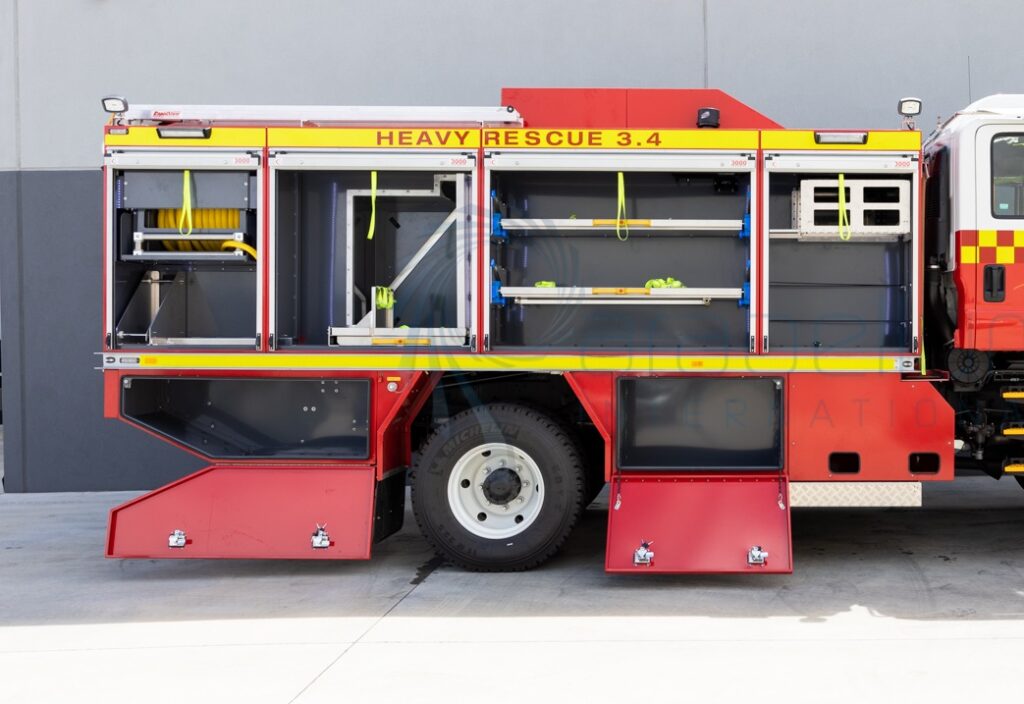

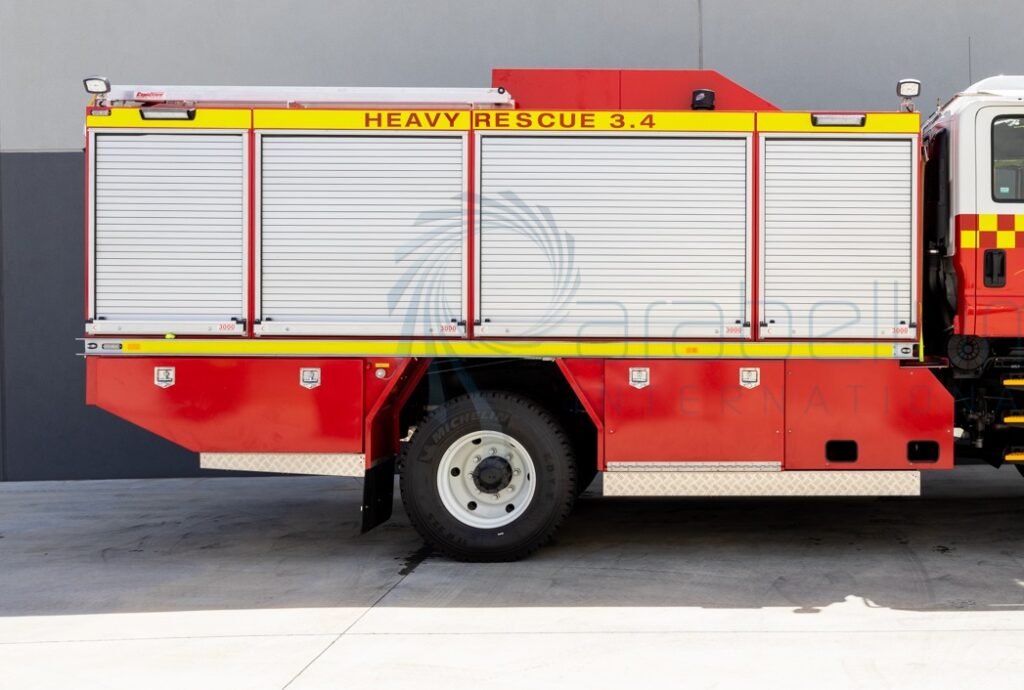

3.4 Heavy Rescue

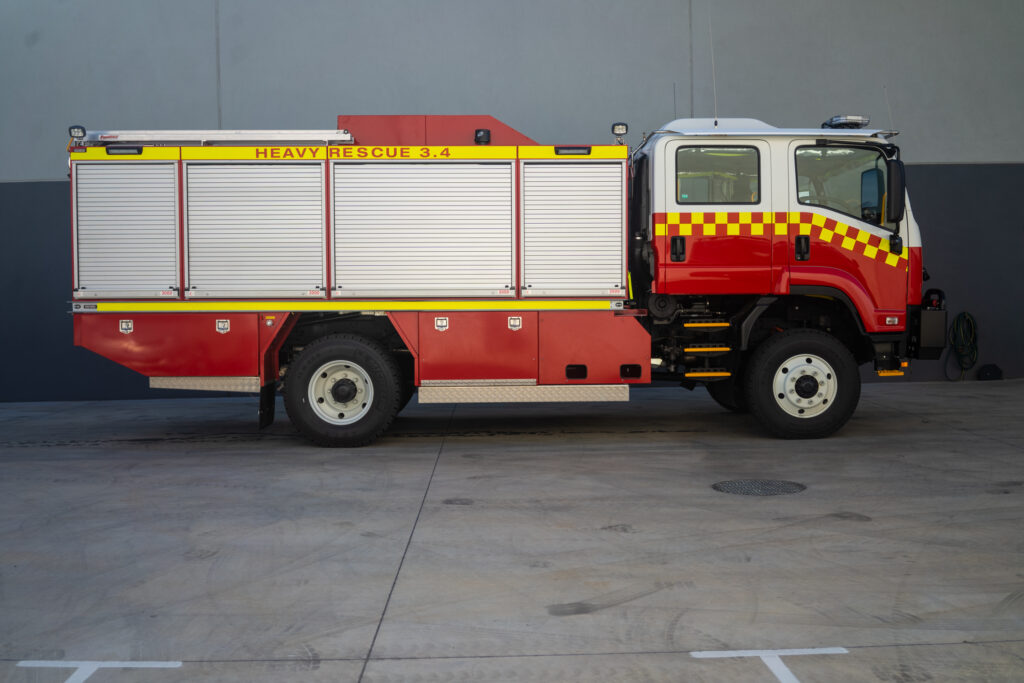

Dual Cab 4×4 Isuzu FTS 139-260 Cab Chassis with factory fitted Aluminium bulbar, winch and tow pin
Waterous Pumpset, Flow 2000 lpm @ 10 bar
Hatz diesel motor, 24V electric start, fuel tank fitted, filled from the truck fuel tank
Bull bar Mounted TFT Tornado Monitor with in cab control
Water tank 3000L poly, with baffles and sump
Mid Mounted Class A Foam tank 200L with external foam fill point
FP135 Around the pump with bypass inject on control panel
1 x 64mm Male BIC Hydrant Fill inlet in N/S Wheel Arch
2 x 64mm outlets w/Female BIC fitting and Plug at rear
2 x 64mm inlets w/Male BIC fittings and Cap at rear
1 x 100mm Storz Suction Inlet
2 x RFRB-2 Underslung Reels, 60M 1” fitted with Gorilla 500psi Hose. With Storz Fittings

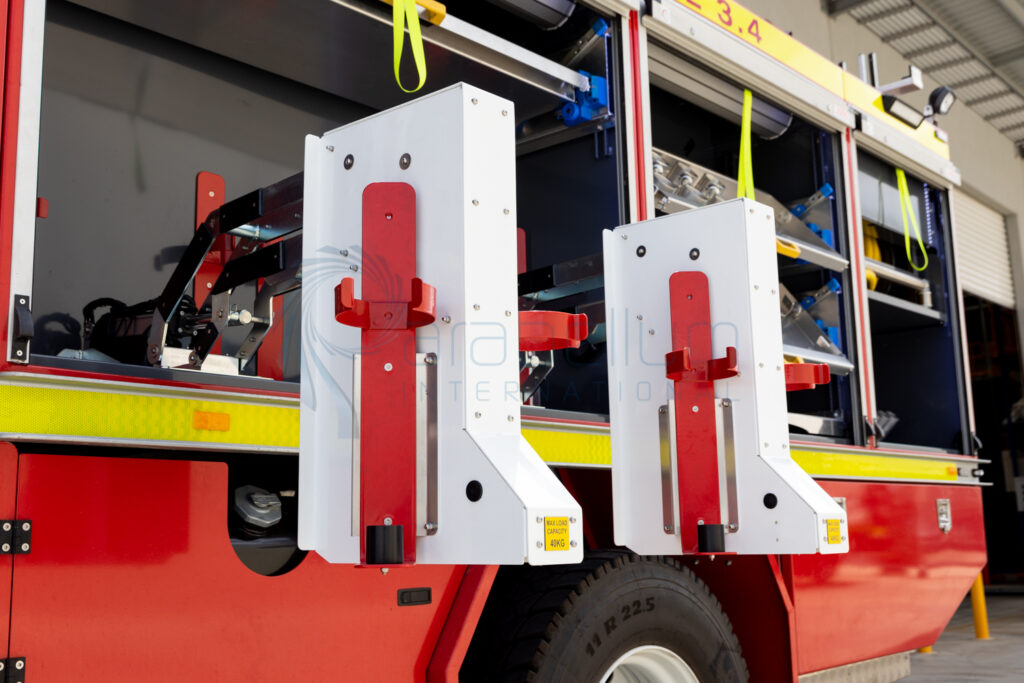

Electric BA Pantograph holders on to suit 6.8L bottles
6 x Spare BA Bottle Holders
Slide and tilts allowed for in all Lockers
Slide out steps to access all lockers
Emergency lighting and scene lighting
Cabin Protection Deluge System
Bumper and wheel sprays can be operated separate to cabin spray
Crew Protection Thermaguard Curtains
Ladder Gantry for 4.5m Little Giant Ladder (or similar)
