Foam Trailer

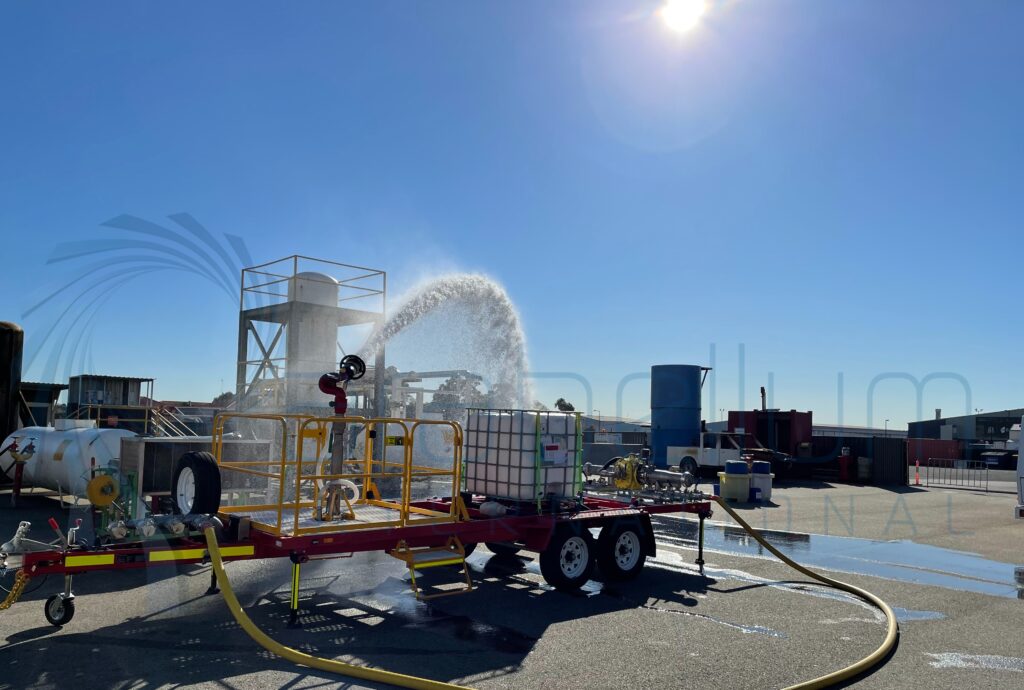

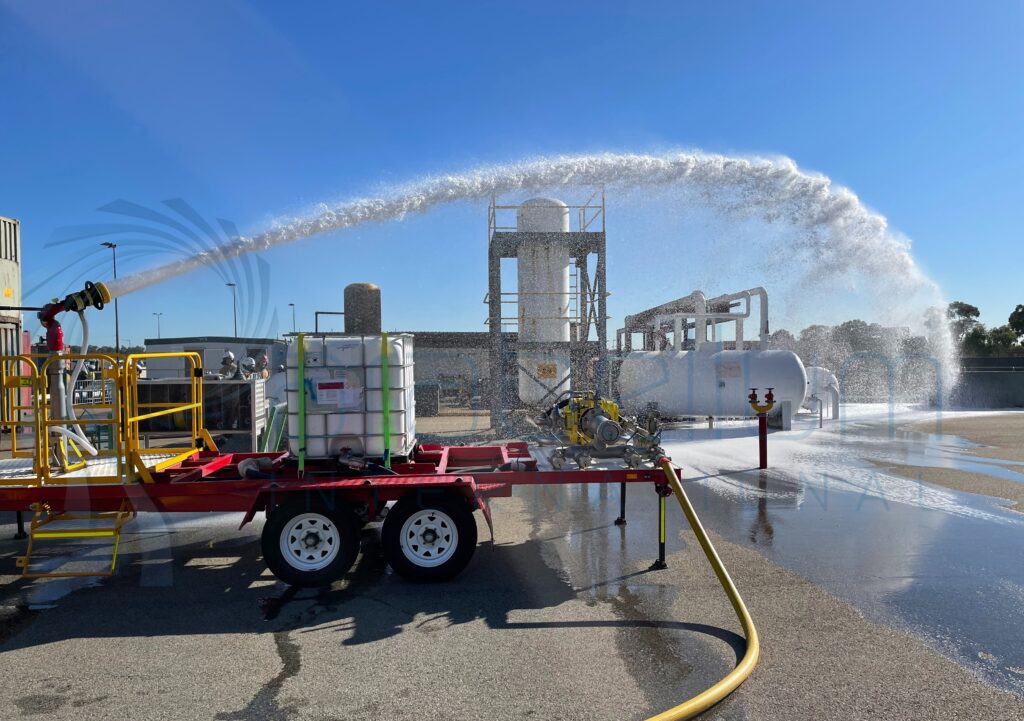

Triple Tote Foam Monitor Trailer with the following features and specifications:

– Application: Seawater (also suitable for Freshwater)

– Flow range: 1,000 – 6,500 L/min

– Water Connection: 6″ ANSI 150

Common stainless-steel manifold connecting all three totes that will terminate at the Turbinator
The Turbinator mounted at the rear of the trailer with the following:

– An inlet manifold mounted on one side with 1 x 125mm storz coupling and 4 x 64mm BIC couplings

– An outlet manifold mounted on one side with 1 x 125mm storz coupling and 4 x 64mm BIC couplings

– A pressure reducer will be mounted on the inlet side of the Turbinator for when using the 5” large diameter hose

A 4000lpm bar monitor mounted at the front of the trailer with a Ranger 1.0 (3800 LPM) self-inducting nozzle attached. The Ranger nozzle can be proportioned at both 1% and 3% and has both full fog and full stream operational capabilities. 100mm shut off valve installed onto the delivery riser. The monitor is fed through 2 x inlet manifolds mounted at the floor of the trailer with each having 4 x 64mm BIC couplings

Ranger 1.0 HF Nozzle:

– Flow Range: 250 – 3800 LPM

– Pressure: 7.0 Bar

– Proportioning: Selectable 1% or 3%

– Water Inlet: 2.5” (F) NH swivel

– Foam Inlet: 1.5” (M)

– Foam: Self Inducting

Vulcan Tiller Bar Monitor:

– Flow Range: 0 – 4000 LPM

– Water Inlet: 3.0” 150# ANSI Flange

– Water Outlet: 2.5” M NH

– Material: Brass

– Operation: Tiller Bar

– Rotation 360°

– Vertical: -45, +90

dual axle trailer built to ADR
70mm tow hitch
electric brakes
powder coat finish
all water and foam lines are 316 stainless steel for corrosion resistance and longevity

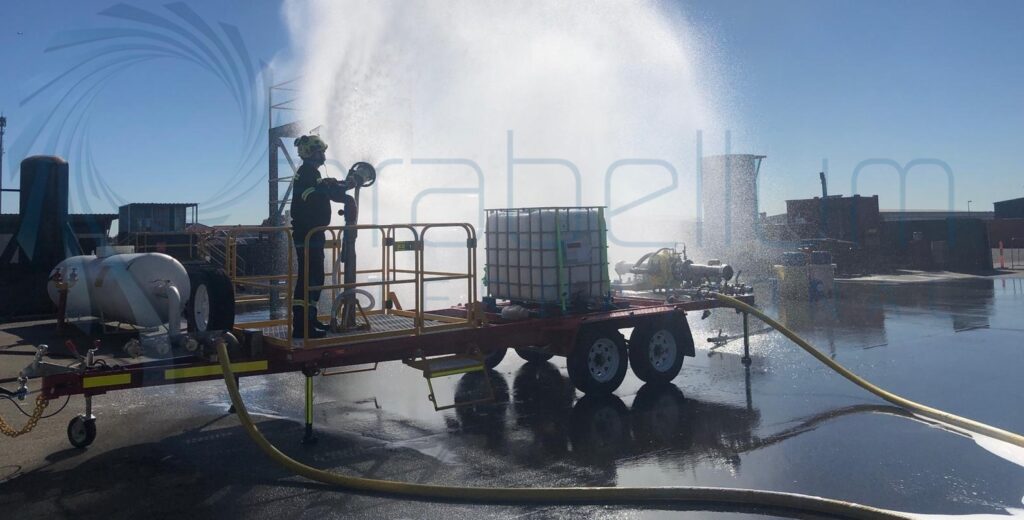

powder coated “Yellow” safety cage built at the front of the trailer for the operator of the monitor
