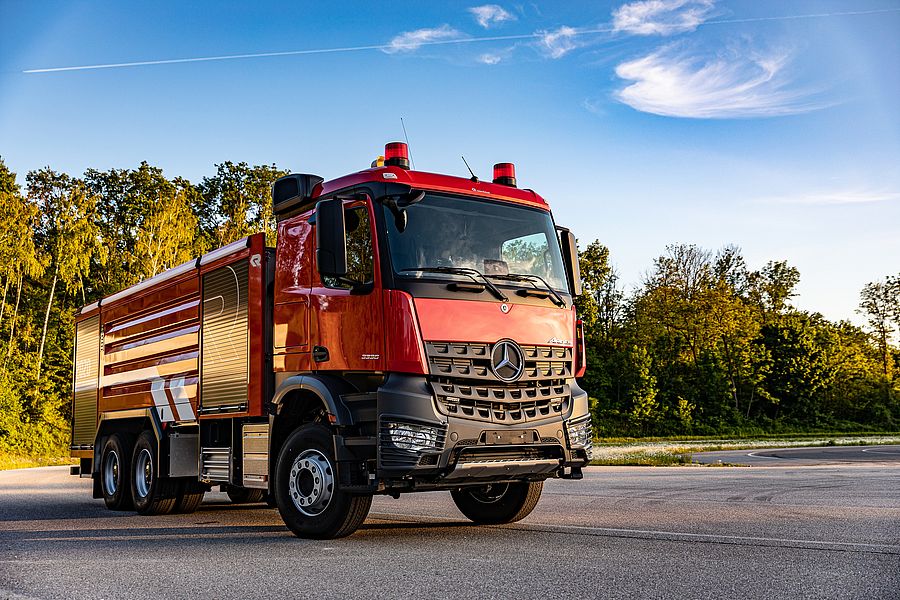

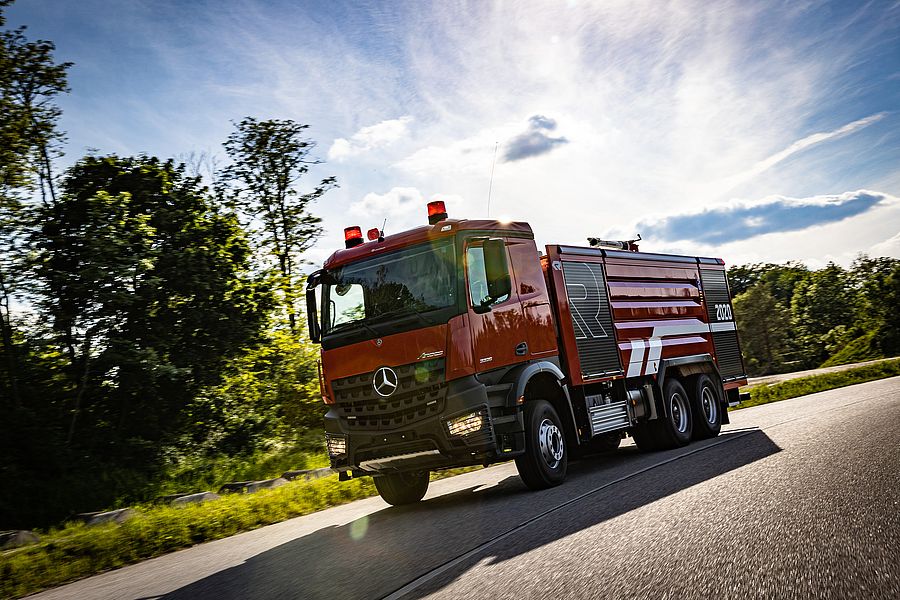

Mercedes 10,000L Pumper

Chassis:

• Type: Mercedes Benz AROCS 3336
• Drive: 6×4
• Engine power: 265 kW (360 PS)
• Transmission: MB Power Shift 3 G230-12
• Wheelbase: 4.200 mm

Cabin:

• Crew: 1 + 4

Vehicle body:

• Modular design concept consisting of laser-cut, edged aluminium sheets and extruded aluminium profiles.
• The complete body is mounted on a bolted subframe.
• Rosenbauer roller shutters with Barlock closures seal the equipment compartments dust-tight

Extinguishing liquid tank:

• Water tank: 10.000 L
• Foaming agent tank: 2.000 L
• Tank material: Polypropylene

Pump system:

• Type: NH35, combined normal and High pressure pump
• Material: light metal
• Output normal pressure: 3.500 L/min at 10 bar
• Output high pressure: 400 L/min at 40 bar

Foam proportioning systems:

• Type: FIXMIX 2.0 M
• Admixing rates: 1%, 3% and 6%
• Admixture type: aut. foam pre-mixing system

Roof turret:

• Type: Rosenbauer RM24M
• Output: 3,000 L/min at 10 bar
• Throw distance: up to approx. 80 m

Rapid intervention device:

• ND rapid attack reel in GR3 + GR4 with 60 m dimensionally stable hose with 25 mm diameter
• Nozzle: Rosenbauer Nepiro Ergo

Powder extinguishing system:

• Manufacturer: MINIMAX
• Capacity: 250 kg
• With quick attack device in GR2

Control System:

• RBC LCS (Logic Control System), based on CAN bus technology.
• Control and monitoring of chassis, body, extinguishing system and warning devices.
• Intuitive operation via 3.5″ display in the cabin and 3.5″ display and digipot in the pump panel.

Alarm units:

• 2 pcs. LED flashing lights on cab roof LED flasher integrated in the rear roof gallery
• Federal PA 300 with siren function

Lighting:

• Near and far ambient lighting off high-power LED bands, over which total body length into the roof gallery integrated

Dimensions and weight:

L x W x H approx. 9,600 x 2,550 x 3,600 mm
Permanent total weight 33.000 kg
