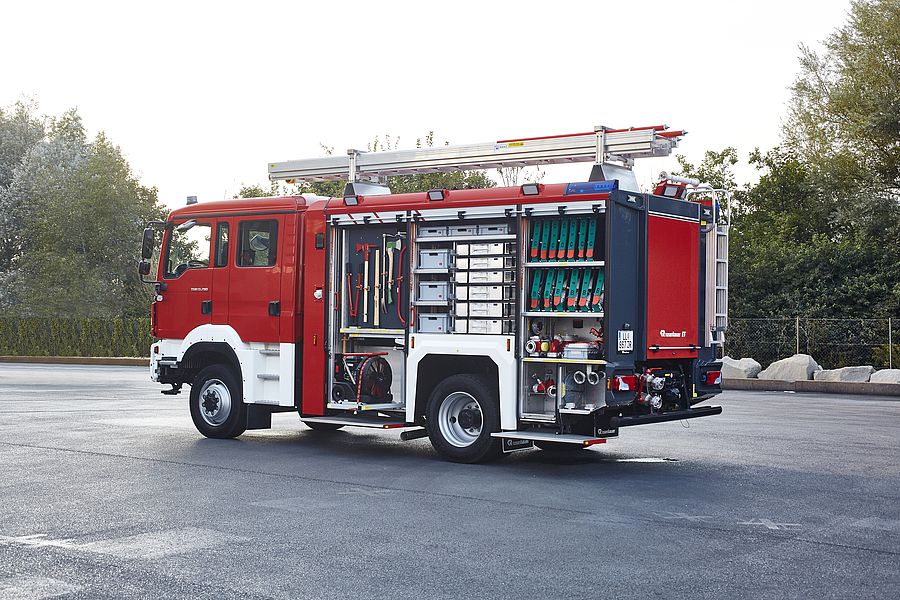

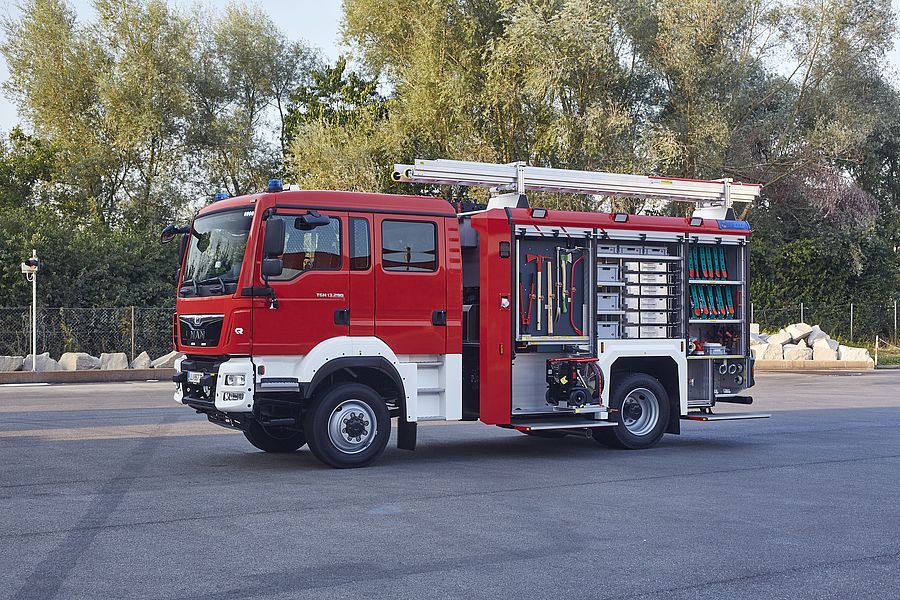

Basic specifications

▪ Type: MAN TGM 15.290 4×4

› Engine Output: 290 hp Euro 6
› Transmission: ZF 9S
› Wheelbase: 3.950 mm

▪ Cab:

› Crew: 1+5 (2/0/4)
› MAN original crew cab
› Original MAN steps
› 4 Rosenbauer COMFORT breathing apparatus
› Safety belts on all seats

▪ Superstructure:

› Rosenbauer aluminium superstructure consisting
of a self-supporting, screwed sheetmetal and profile construction

▪ Equipment compartments:

› Full height body with roller shutter and hinged steps
› COMFORT revolving shelves for the optimum removal and safe storage of equipment

▪ Control system:

› Electric system with manual switches
› Pressure governor

▪ Extinguishing systems:

› Type: NH35 combined normal/high-pressure pump
› Output: from 3,500l/min at 10 bar, 400 l/min at 40 bar
› Water tank volume: 2,500l
› Foam tank volume: 200l
› Foam proportioning system normal pressure: FIXMIX 1+3% external foam suction line
› Foam proportioning system high pressure: FIXMIX 1% external foam suction line

▪ Pressure outlets:

› Four manual pressure outlets in the rear side compartments left and right

▪ Quick attack unit:

› Rear-mounted, normal pressure hose reel (25 mm hose, 60 m)

▪ Lighting mast:

› Rear mounted pneumatic lighting mast with LED lamps

▪ Electrical systems:

› LED flashing blue lights integrated in the rear superstructure
› Surrounding area lighting with LED spread beam lights mounted on both side of the roof gallery and on the rear

Dimensions and weight

L x W x H Max 7.450 x 2.500 x 3.400 mm
Permitted gross weight 15.000 kg
