Basic specifications

▪   Chassis:

› Type: Scania P320B 4×4 Euro 5

› Engine output: 235 kW (320 hp)

› Transmission: Allison (3000) Automatic Gearbox GA766R with Retarder

› Wheelbase: 3,950 mm

› Overhang: 2,500 mm

▪   Cabin:

› No crew cab, only driver‘s cab (1+1)

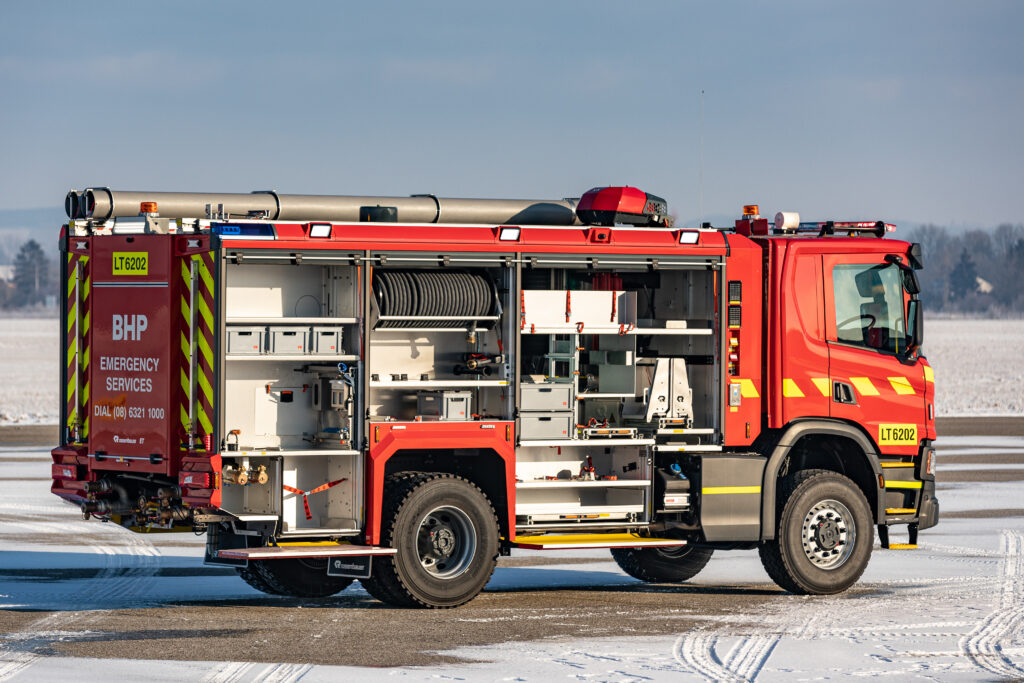

▪   Vehicle Body:

› ET Premium Pumper

› Rosenbauer aluminum body made from self- supporting bolted and bonded aluminum sheets and profile construction with aluminum sandwich sheets and robust plastic covers according to EN1846:2013

› Aluminum roller shutters for locker 1-6 (side)

› Top hinged aluminium sheet ‘shelter’ door for locker 7 (rear)

› Hinged lower steps below locker 1,2,5,6

› Fixed Rear Axle Fenders

▪   Control System:

› LCS (Logic Control System) based on CAN-bus technology

› Control and monitoring of chassis, body, extin- guishing system and warning devices.

› Intuitive operation by means of displays, Digipot and key panels.

› Manual operation by manometers and hand gears

▪   Extinguishing System:

› Truck-mounted combined Normal-High-Pressure fire pump type NH35, gun metal

› Pressure Governor

› Central suction inlet, Storz 125 coupling

› 2 x Water tank filling lines in the rear

› 2 x Suction inlets in the rear

› Water tank capacity: 2,800 l with automatic level regulation

› Foam tank capacity: 100 l with automatic level regulation

› Foam tank filling and drainage line

› Around the pump foam proportioning system FIXMIX 2.0 A (1%, 3%, 6%)

▪   Turrets

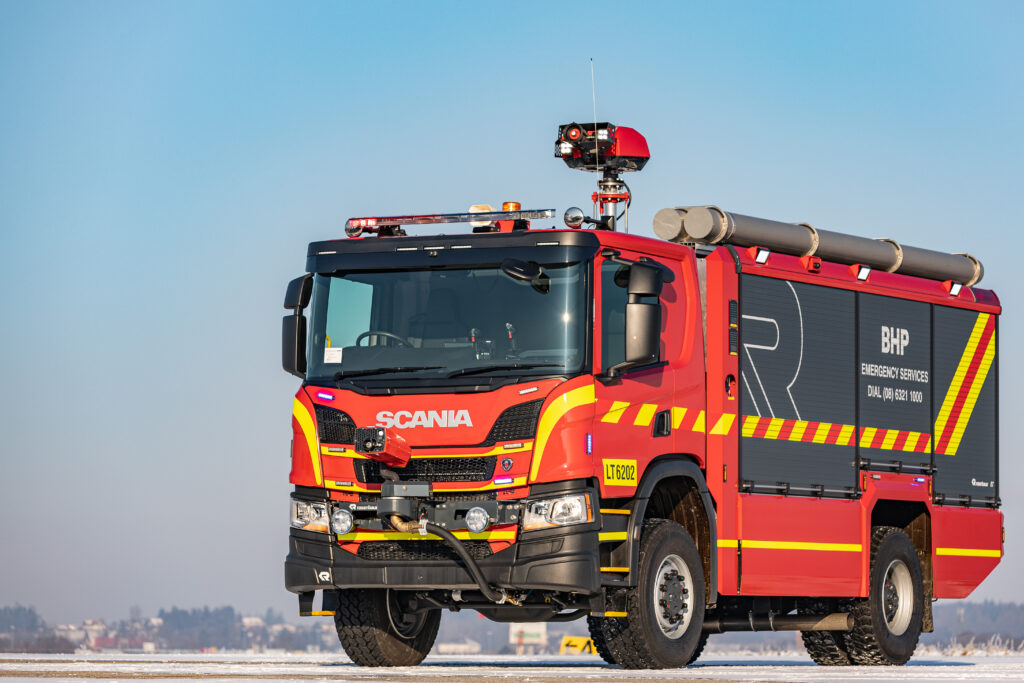

› RM35 roof turret, placed in front of water tank, incl. lifting device, operated by joystick in driver‘s cab and via remote control

› RM15 bumper turret, operated by joystick in

drivers cab

▪   Outlets:

› 4 NP discharge outlets in locker 5 and 6

▪   Hose Reel:

› 2 HP hose reels with 90 m non-collapsible rubber hose DN 25 mm in locker 5 and 6

› Electric rewind function & hose guide rollers

› High-pressure fog nozzle NEPIRO Ergo incl. foam barrel (200 lpm @ 40bar)

▪   Warning Devices:

› Acoustic warning device FEDERAL PA300 incl. 100 W loudspeaker and microphone

› LED flashing light bar (Red/Blue) on cab-roof

› 6 LED flashers installed in front grille

› 2 amber rotating beacons

▪   Illumination:

› LED illumination in locker-rooms

› Scene light system with 3 lateral LED lights each side and 2 in the rear

› Light mast 4×2 LED spotlights with 42W each, sunked in locker 7

▪   Additional Features:

› Visual water and foam agent level display outside

› 230 V supply coupler incl. compressed air in power strip

› Hygiene wall with compressed air discharge in locker 6

› Bird View

› Pump and Roll

Brackets and Body Components:

› 2 Lowering devices manually (ladder, suction hoses)

› SCBA holders, pull-out able in locker 1 and 2

Dimensions and weight:
