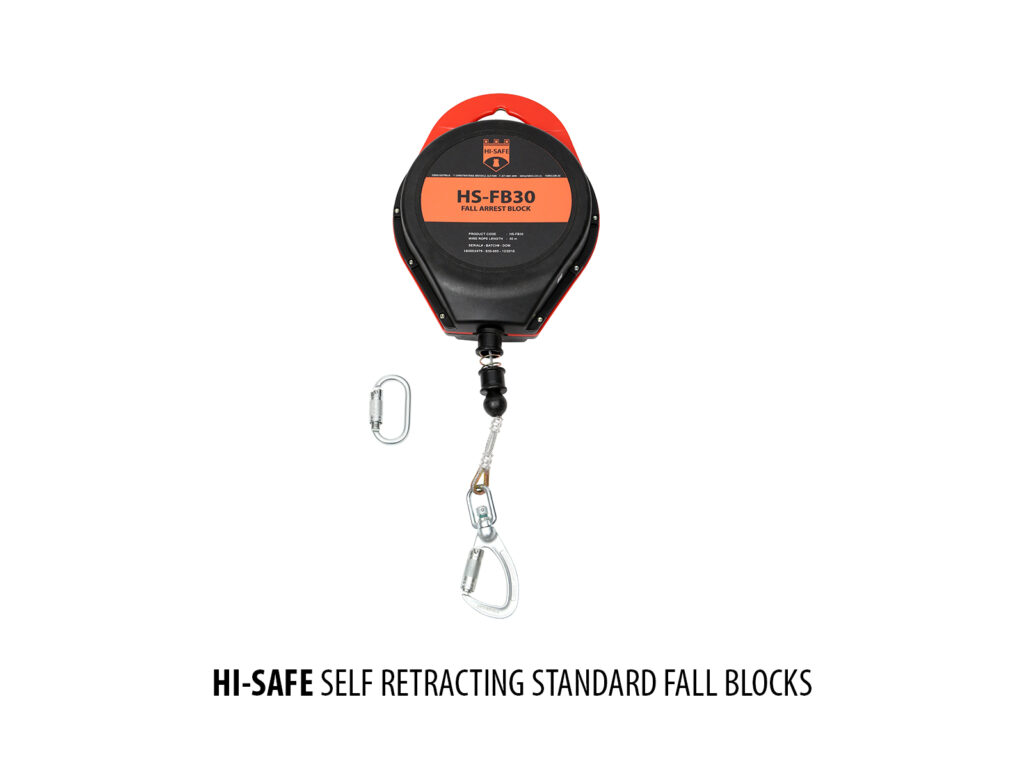

The Hi-Safe Self Retracting Fall Blocks are available in a range of standard or sharp edge rated models, all with 4.8 mm galvanized steel wire.
- STANDARD BLOCKS are for vertical use
- SHARP EDGE BLOCKS may be used both vertically or horizontally and are rated for sharp edges to radius of 0.5 mm
All blocks feature:
- A comfortable carry handle that doubles as the attachment anchor point, a steel swivel triple action karabiner with integral fall indicator plus a separate steel triple action karabiner for anchorage options
- All blocks reduce dynamic loads to less than 6kN in the event of a fall
- All blocks are fully serviceable and made of proprietary high impact Polymer that is near indestructible
- SHARP EDGE BLOCKS conform to AS/NZS 1891.3, EN 360:2002, G11#11.060
- STANDARD BLOCKS conform to AS/NZS 1891.3, EN 360:2002
- Hardware conforms ANSI Z 359.12-2009
The Hi-Safe Self Retracting Fall Blocks are available in a range of standard or sharp edge rated models, all with 4.8 mm galvanized steel wire.
- STANDARD BLOCKS are for vertical use
- SHARP EDGE BLOCKS may be used both vertically or horizontally and are rated for sharp edges to radius of 0.5 mm
All blocks feature:
- A comfortable carry handle that doubles as the attachment anchor point, a steel swivel triple action karabiner with integral fall indicator plus a separate steel triple action karabiner for anchorage options
- All blocks reduce dynamic loads to less than 6kN in the event of a fall
- All blocks are fully serviceable and made of proprietary high impact Polymer that is near indestructible
- SHARP EDGE BLOCKS conform to AS/NZS 1891.3, EN 360:2002, G11#11.060
- STANDARD BLOCKS conform to AS/NZS 1891.3, EN 360:2002
- Hardware conforms ANSI Z 359.12-2009
| Code | Model | Max Length | Wire Dia. | Weight | Max Weight VERTICAL / HORIZONTAL |
MBS |
|---|---|---|---|---|---|---|
| HS-FB3.5-SE | Fall Block Sharp Edge | 3.5 m | 4.8 mm | 2.7 kg | 140 kg / 100 kg | 12kN |
| HS-FB5-SE | Fall Block Sharp Edge | 5 m | 4.8 mm | 3.4 kg | 140 kg / 100 kg | 12kN |
| HS-FB10-SE | Fall Block Sharp Edge | 10 m | 4.8 mm | 4.4 kg | 140 kg / 100 kg | 12kN |
| HS-FB15 | Fall Block Standard | 15 m | 4.8 mm | 6.7 kg | 140 kg / NA | 12kN |
| HS-FB20 | Fall Block Standard | 20 m | 4.8 mm | 7.5 kg | 140 kg / NA | 12kN |
| HS-FB30 | Fall Block Standard | 30 m | 4.8 mm | 13.1 kg | 140 kg / NA | 12kN |
