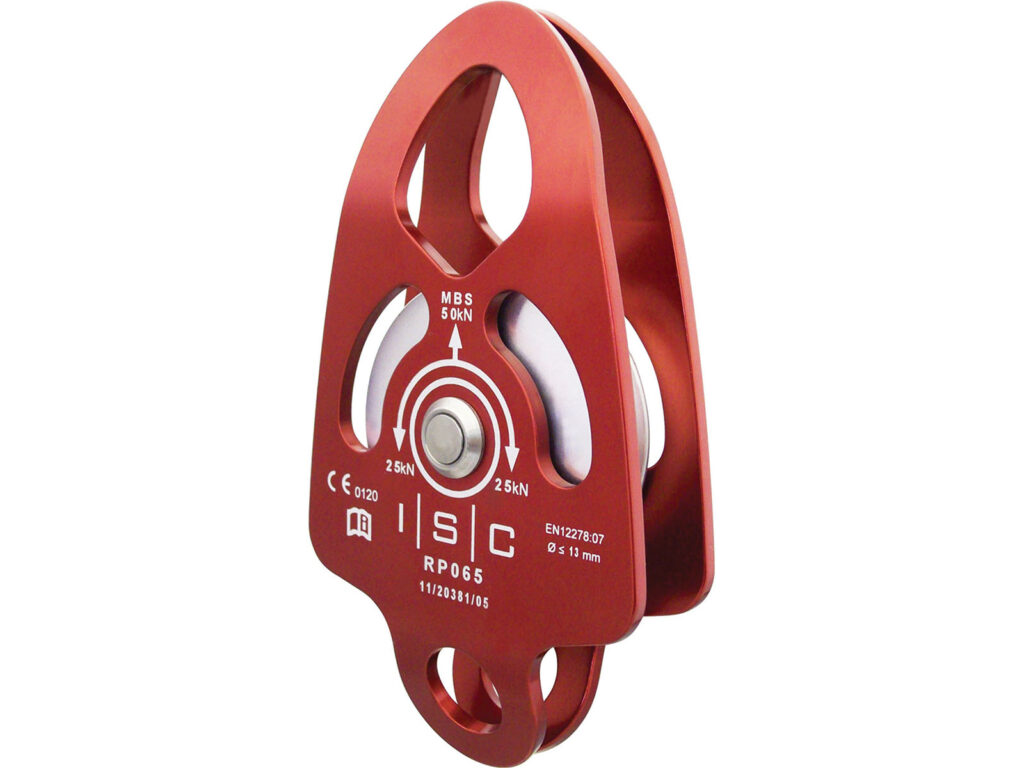

ISC Prusik Minding Pulleys are designed for heavy duty rescue, rigging and hauling systems.
The full range consists of sizes small, medium and large. Each size is available in a single or double pulley configuration, in aluminium or stainless steel.
Alloy Plate with Alloy Wheel
| CODE | DESCRIPTION | MBS | ROPE | SHEAVE | WEIGHT |
|---|---|---|---|---|---|
| VISC 4-060A1 | Small Single | 40kN | 13 mm | 50 mm | 200 g |
| VISC RP061A1 | Small Double Becket | 40kN | 13 mm | 50 mm | 340 g |
| VISC RP063A1 | Medium Single | 50kN | 13 mm | 62 mm | 280 g |
| VISC RP065A1 | Medium Single Becket | 50kN | 13 mm | 62 mm | 300 g |
| VISC RP064A1 | Medium Double Becket | 50kN | 13 mm | 62 mm | 500 g |
| VISC RP066A1 | Large Single | 70kN | 16 mm | 75 mm | 440 g |
| VISC RP067A1 | Large Double Becket | 70kN | 16 mm | 75 mm | 760 g |
Stainless Steel with Stainless Wheel
| CODE | DESCRIPTION | MBS | ROPE | SHEAVE | WEIGHT |
|---|---|---|---|---|---|
| VISC RP060D1 | Small Single | 40kN | 13 mm | 50 mm | 398 g |
| VISC 4P061D1 | Small Double Becket | 40kN | 13 mm | 50 mm | 674 g |
| VISC RP063D1 | Medum Single | 50kN | 13 mm | 62 mm | 584 g |
| VISC RP065D1 | Medium Single Becket | 50kN | 13 mm | 62 mm | 584 g |
| VISC RP064D1 | Medium Double Becket | 50kN | 13 mm | 62 mm | 1036 g |
| VISC RP066D1 | Large Single | 50kN | 16 mm | 75 mm | 896 g |
| VISC RP067D1 | Large Double Becket | 50kN | 16 mm | 75 mm | 1626 g |
