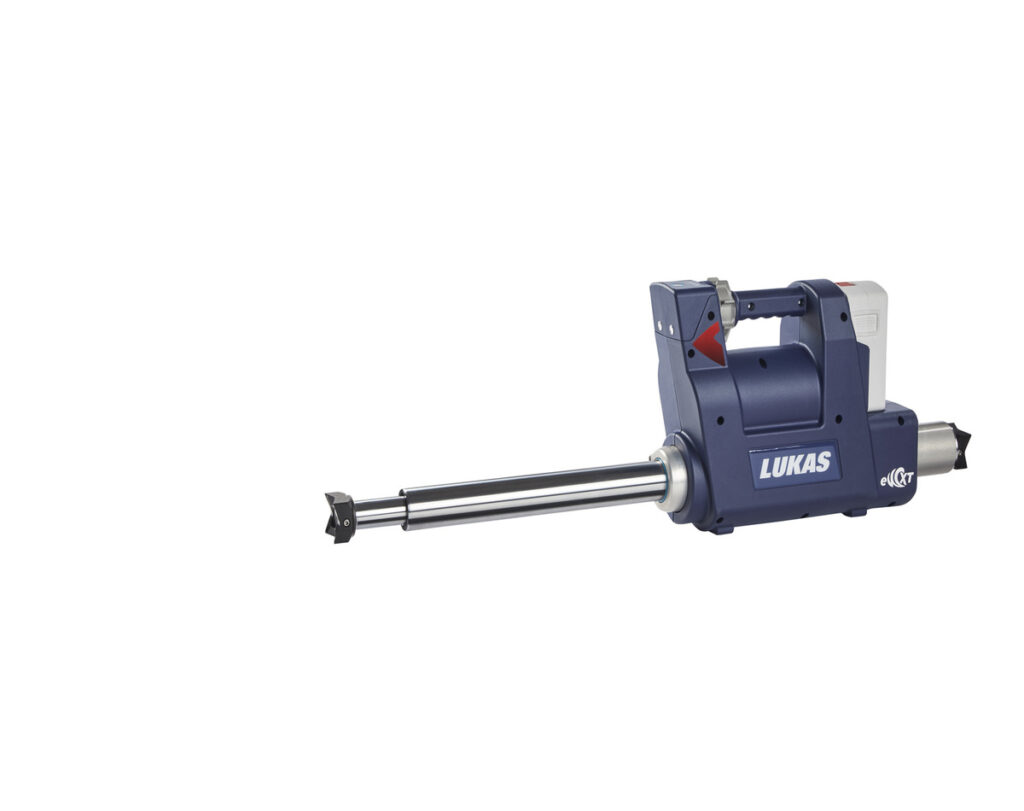

LUKAS R 521 eWXT Ram

R521
ENQUIRE NOW

This field is for validation purposes and should be left unchanged.

Product Information

The LUKAS rescue rams not only impress with a convincing lifting power, a particularly firm grip thanks to the “claw geometry” and a particularly long stroke, they can also be used flexibly. For example, our telescopic rescue cylinders are available in three different lengths, which can be used as required. The R 521 eWXT is the “golden mean” of our telescopic rescue cylinders. It forms the basis and the standard gauge for our muscle man R 522 eWXT and the Minimiser R 520 eWXT. Its claw technology bites into any material and in any position. The small giant is waterproof like the whole eWXT range and is optionally equipped with a 5 Ah or 9 Ah rescue battery. The 9 Ah battery offers the longest operating time in the industry.

Technical Data of the product “R 521 eWXT”
Type: Telescopic cylinder
Dimensions: 579 x 140 x 327 mm
Extended length: 1359 mm
EN-Classification: R 127/403-60/377-20,2
Total lift: 780 mm
Lifting force piston 1: 127 kN
Lifting force piston 2: 60 kN
piston stroke piston 1: 403 mm
piston stroke piston 2: 377 mm
Weight: 19,0 kg
Protection class: IP 58
Series: eWXT
