Arachnipod Advantage Tripod

Arachnipod Advantage tripod
ENQUIRE NOW

This field is for validation purposes and should be left unchanged.

Product Information

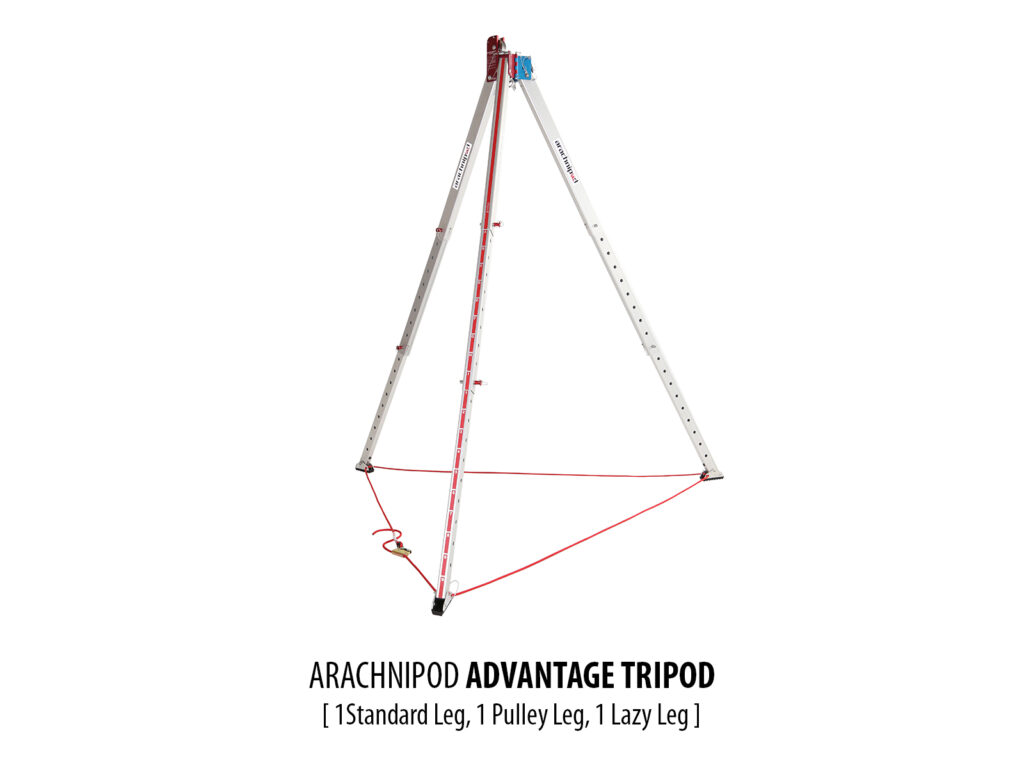

The Arachnipod Advantage Tripod comprises one Standard Leg, a Lazy Leg and a Pulley Leg. The system provides two load attachment points, three stabilisation rigging points, a double-grooved pulley plus the versatility to configure more technical A-Frame systems.

The Arachnipod’s uniquely designed head system allows the legs to be quickly disconnected from each other to store flat for compact storage and transportation. Each of the legs is supplied with an upgraded Standard Foot 2.

  • Rectangular, adjustable legs with leg pins
  • Two stainless steel swivel eye bolt anchor points
  • Stainless steel double-grooved pulley accommodates 8mm steel wire rope and fibre rope up to 13mm
  • The versatile Lazy Leg also functions as a Standard Leg
  • Each leg includes a stabilisation attachment point
  • Upgraded Standard feet suits both flat and uneven surfaces, pivot to adjust to ground variations and incorporate an aggressive non-slip tread pattern

In the Box

  • 1 x Standard Legs feature rated load attachment points that swivel 360 degrees, along with an additional D-shackle attachment point for stabilisation rigging
  • 1 x  Pulley Leg incorporates a pulley designed to accommodate up to 13 mm fibre rope as well as up to 8 mm steel/stainless steel wire cable rope
  • 1 x Lazy Leg 2 incorporates a swivelling, rated load attachment point, is used to in the formation of A-Frames and Gin/Mono Pole system
  • 1 x Lazy Leg Adaptor accessory which morphs the Lazy Leg into a Standard Leg
  • 1 x Feet Rope and Rope Grab
  • 1 x Transport Bag

The Advantage Tripod can be configured into:

  • Tripod
  • A-Frame (Rigging Plate required – sold separately)
  • Sideways A–Frame (Rigging Plate – sold separately)
  • A-Frame with Lazy leg (Reverse Head and Quad Plate required – sold separately)
  • Handrail Recovery Monopole
Specifications     Advantage Tripod
Max. Inside Clearance Height    2671mm / 105″
Inside Feet Footprint 2533mm / 99.7″
Configured Device Weight 26 kg / 57 lb
WLL External Anchor Point 400 kg / 880lb at max. height
Minimum Breaking Strength 40kN
WLL Load Anchored to Leg 220kg / 485lb
Certification Certified in 3 and 4 leg configurations to CEN/TS 16415:2013
for max 2 persons and EN 795:2012 for single person use
