Honor Davit Systems

HONOR TWINSLEEVE DAVIT SYSTEM
ENQUIRE NOW

This field is for validation purposes and should be left unchanged.

Product Information

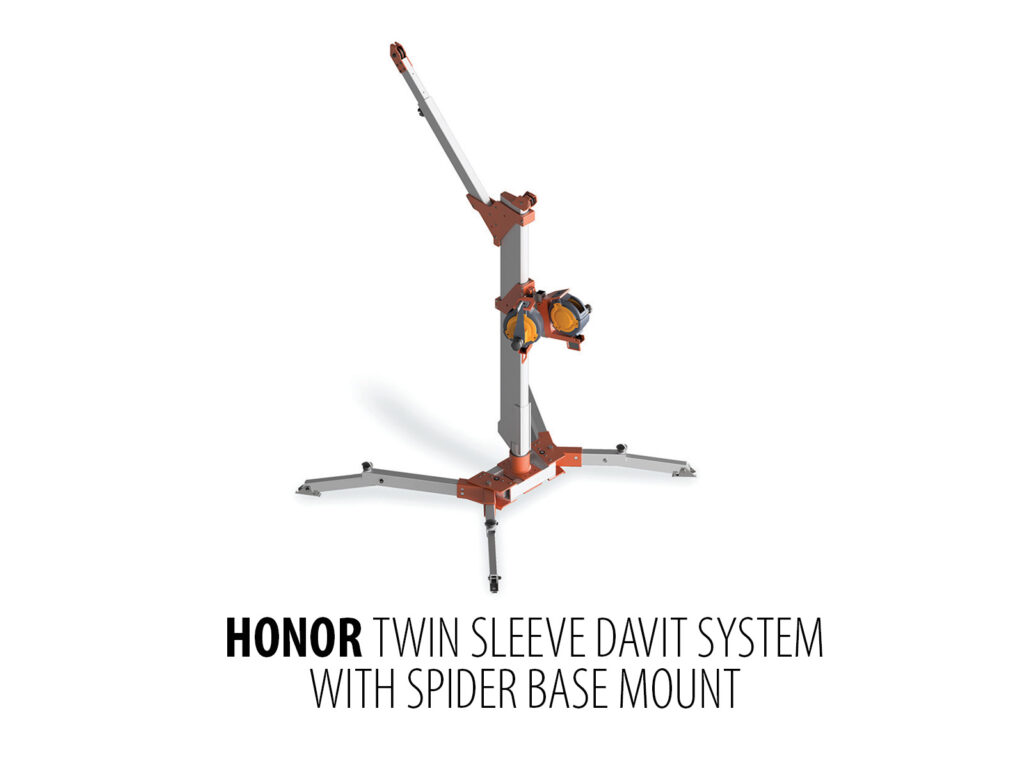

The patented HONOR TwinSleeve davit is a unique, feature-rich anchor device for people and loads. Light in weight with optional bases that are quick to assemble, the Honor TwinSleeve is ideal for fall arrest, confined space entry and rescue and retrieval.

The unique Twin Sleeve design allows both the boom and mast to rotate a full 360 degrees and be adjusted in length and height for optimal positioning. If needed, two devices – fall arrest, man-riding or rescue winch – can be connected alongside each other.

Base Options

  • Standard Spider Mount
  • Vehicle Tow-Bar Mount
  • Wall Clamp
  • Fixed Floor Post in galvanised or stainless steel
pecifications
Max Height 1950 – 2500 mm
Boom Reach 620 – 900 mm
Rotation 360 degrees
Weight (without base) 22 kg
Max. Capacity 1 person (120 kg)
Standards EN 795:2012 Class-B – pending
US-Standard: Z359.14-2012-A – pending
