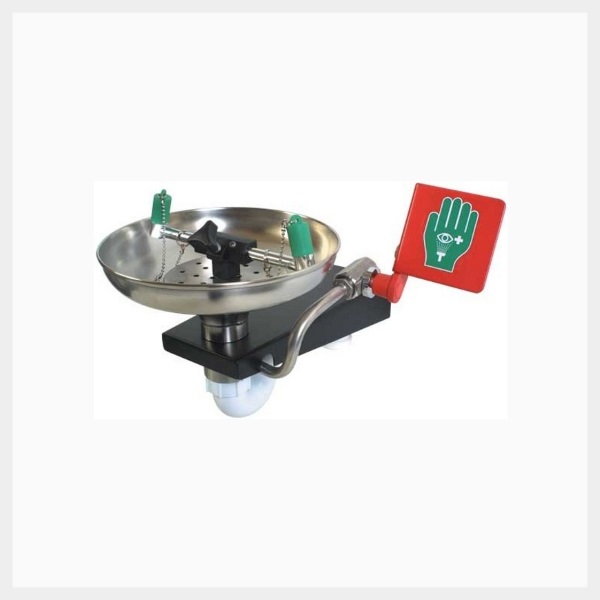

H-STD85G is an open 316L stainless steel bowl, wall-mounted emergency eye/face wash featuring twin spray nozzles protected by dust covers. When activated via the push plate, the water jets lift off the dust covers. The eye wash diffusers are fitted with fine mesh strainers and individual flow controllers designed to give a gentle flow of aerated water. Open bowl design is intended for indoor use but may, where practical, be located outdoors in warmer climates. Available in pedestal-mounted H-STD85GSP model. Optional foot control pedal H-TFC.
|Dimensions||430 × 400 × 290 mm|
Type: Plumbed in
Installation: Wall Mounted
Eye/face wash bowl construction: Open Stainless Steel Bowl
Designed in accordance with ANSI and EU standards.
Twin spray nozzles protected by dust covers which lift off when eye wash is activated.
Fine mesh strainers and individual flow controllers provide a gentle flow of aerated water.
Flow regulator valve ensures an optimum water flow.
|Materials of Construction||Eye/face wash bowl: 316L stainless steel|
|Water Inlet||1/2” Female BSP|
|Design Operating Pressure||2.0 to 6 BAR G (29 to 87 PSI)
(higher supply pressures accommodated with the incorporation of the optional pressure reducing valve)
|Test Pressure||10.3 BAR G (149 PSI)|
|Minimum Flow Rates||Eye/Face Wash: 12 litres/minute minimum|
|Minimum Ambient Operating Temperature||5º C (41º F)|
|Maximum Ambient Operating Temperature||35º C (95º F)|
|Activation/operation||Push plate operated (optional foot treadle control for hands free operation)|
